4 CH TVI / AHD/CVI 8MP/5MP/4MP/3MP/1080P/720P/WD1video input 4 CH DVR supports 2 CH 8MP/5MP / 4MP / 3MP /1080P / 960P /720P IP video input by default
4CH analog video input can be switched to 4CH IP video input
Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timed / sensor /motion / AI recording Playback : 4 / 8 CH simultaneously playback
Search: time slice, time, event, tag and smart search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access DHCP, DDNS, PPPoE network protocol
Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device Multi-user online simultaneously
Authorization management, log review and device status review
HDMITM 4K output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises Support NAT function and QRCode scanning by mobile phones Powerful mobile surveillance by smart phones with iOS and Andriod OS
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.

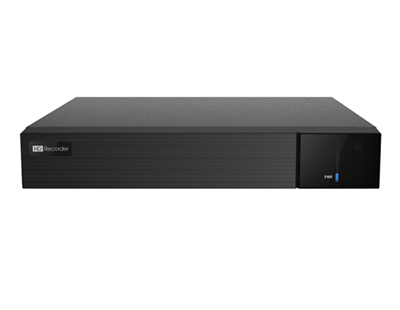

Model | TD-2104NS-HP-H | |
System | OS | Embedded Linux |
Video | Analog Video Input | BNC × 4 |
BNC interface (1.0Vp-p; 75Ω) | ||
TVI/AHD/CVI : 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps (live) | ||
IP Video Input | 2CH(up to 6CH) | |
Up to 8MP@20fps, lower than 8MP @30fps | ||
Total Input | 6CH | |
Output | HDMITM × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 VGA × 1 : 1920 × 1080 / 1280 × 1024 | |
BNC × 1 : CVBS ( used as the main or spot output ) | ||
Compression | H.264/H.265/H.265+ | |
Multi-screen Display | 1 /4/6/9 | |
Audio | Input | RCA ×1 |
Output | RCA × 1 (linear, 600Ω) | |
Two-way audio | Take up channel one audio input | |
Compression | G.711(U/A) | |
Record | Resolution | 4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 3MP/1080P/720P/WD1 |
Frame Rate | Analog Channel: 4K@8fps (PAL/NTSC); 4K Lite@12fps/15fps (PAL/NTSC); 5MP@12fps (PAL / NTSC); 5MP Lite@20fps (PAL/ NTSC); 4MP/3MP@12fps / 15fps (PAL / NTSC); 4MP Lite/1080P/720P/WD1@25fps / 30fps (PAL / NTSC) | |
IP Channel: 8MP @20fps (PAL / NTSC); lower than 8MP @25fps / 30fps (PAL / NTSC) | ||
Bit Rate | 32Kbps ~ 4Mbps | |
Mode | Manual, timed, motion, smart event | |
Playback | Playback | 4CH |
Search | Time slice / time / event / tag search | |
Smart Search | Highlight colors to display the camera record in a certain period of time, | |
Function | Play, pause, FF, FB, digital zoom, etc. | |
Alarm | Mode | Manual, motion, exception, smart event |
Input | No | |
Output | No | |
AI Function | Smart Motion Detection Performance | 4CH |
Perimeter Protection Performance | 1CH | |
Network | Interface | RJ 45 100Mbps × 1 |
Protocol | TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, 802.1x, FTP, RTP, | |
RTSP, RTCP, NTP, SMTP, UDP,Websocket, SNMP, IGMP | ||
Incoming Bandwidth | 16Mbps (max.40Mbps) | |
Outgoing Bandwidth | 40Mbps | |
Client Connection | Max. 10 users access | |
MobileDevice | OS | iOS, Andriod |
Storage | HDD | SATA× 1, up to 10TB per HDD |
Backup | Local Backup | U disk, USB mobile HDD |
Network Backup | Yes | |
Port | RS 485 | Yes (half-duplex), connect to PTZ or keyboard |
USB | USB 2.0 × 2 | |
Remote Controller | Optional | |
Others | Power Supply | DC12V / 1.5A |
Consumption | ≤ 10W ( without HDD ) | |
Dimensions(mm) | 255 × 222 × 42 ( W × D × H ) | |
Working Environment | -10~50°C, 10%~90% (humidity) | |
Certificate | CE, FCC | |
Environmental Protection | Comply with Directive EU RoHS, WEEE, REACH | |
