16 CH TVI / AHD/CVI 1080P/1080PLite/720P/720P Lite/WD1 video input
16 CH DVR supports 2CH 5MP / 4MP / 3MP / 1080P / 960P / 720P / IP video input
16CH analog video input can be switched to 16CH IP video input
H.265/H.264 coding
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timed / motion / AI recording
Playback : 16 CH simultaneously playback
Search: time slice, time, event, tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol
Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
Support remote network transmission and remote surveillance with mobile device
Authorization management, log review and device status review
Support 1080P output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Andriod OS
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.

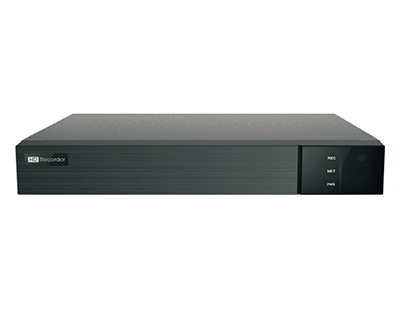

Model | TD-2116NS-HL | |
System | OS | Embedded Linux |
Video | Analog Video Input | BNC ×16 |
BNC interface (1.0Vp-p; 75Ω) | ||
TVI/ AHD/CVI: 1080P/ 1080P Lite/ 720P/ 720P Lite/ WD1 | ||
IP Video Input | 2CH (up to 18CH) | |
Up to 5MP@25fps | ||
Total Input | 18CH | |
Output | HDMITM × 1 :1920 × 1080 / 1280 × 1024 / 1024 × 768 | |
VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 | ||
BNC × 1: CVBS( used as the main or spot output) | ||
Compression | H.264/H.265/H.265+ | |
Multi-screen Display | 1/4/6/8/9/13/16/25 | |
Audio | Input | RCA ×1 |
Output | RCA × 1 (linear, 600Ω) | |
Two-way audio | Take up channel one audio input | |
Compression | G.711(U/A) | |
Record | Resolution | 1080P Lite/ 720P/ 720P Lite/ WD1 |
Frame Rate | Analog Channel: | |
1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) ( only CH 1 supports) 1080P Lite/720P/WD1: 12fps (PAL)/15fps (NTSC) ( other channels support) 720P Lite: 25fps(PAL) / 30fps (NTSC) | ||
IP Channel: 25fps(PAL) / 30fps (NTSC) | ||
Bit Rate | 32Kbps ~ 4Mbps | |
Playback | Playback | 16CH |
Search | Time slice / time / event / tag search | |
Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events | |
Function | Play, pause, FF, FB, digital zoom, etc. | |
Alarm | Mode | Manual, motion, exception, smart event |
Input | No | |
Output | No | |
Network | Interface | RJ 45 100Mbps × 1 |
Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP | |
Incoming Bandwidth | 16Mbps | |
Outgoing Bandwidth | 80Mbps | |
Client Connection | Max.10 users access | |
MobileDevice | OS | iOS, Andriod |
Storage | HDD | SATA× 1, up to 8TB |
Backup | Local Backup | U disk, USB mobile HDD |
Network Backup | Yes | |
Port | RS 485 | No |
USB | USB 2.0 × 2 | |
Remote Controller | Optional | |
Others | Power Supply | DC12V /2A |
Consumption | ≤ 10W ( without HDD ) | |
Dimensions(mm) | 255 × 234 × 42 ( W × D × H ) | |
Working Environment | -10~50°C, 10%~90% (humidity) | |
Certificate | CE, FCC | |
Environment Protection | Directive EU RoHS, WEEE, REACH | |
