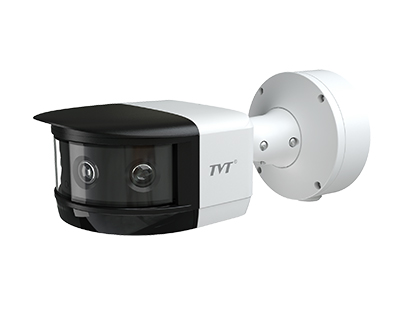

Four 4MP video modules to stitch one 16MP (5520x2400), 180°panoramic view stream
True starlight technology (0.008lux@F2.0 AGC on) provides vivid color at most scenarios
25m Smart IR provides clear and uniform B/W image under no light condition
DWDR, 3D DNR, BLC, HLC
Covers a large public area (7,800m2 or 70 m in radius) to count crowd density, record actions.
Recognizes max.100 faces/sec within a public area (278 m2 or 13m in radius)
Alarm triggered by multi-rules: crowd density limit, mask-wearing status, line crossing, intrusion, device error
5 zones of e-PTZ, 4 zones of privacy masks, and custom logo support.
ONVIF, interoperability between network video products, regardless of manufacturer
Interface: RJ45, SD Card, Alarm, Audio, RS485
- 30°C~ 60°C (-22°F ~ 140 °F), IP67, IK10, Metal body
PoE+ (802.3.at, class 3), and DC12V
One IP, one cable, reducing total fees
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Module | TD-6444M3(D/PE/AR2) |
Image sensor | 1/1.8” progressive scan CMOS image sensor x 4 |
Mini. Illumination | Color：0.008Lux @ (F2.0，AGC ON)；B/W：0.008Lux @(F2.0，AGC ON);0Lux with IR |
Image setting | Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, and AWB adjusted by client software/browser |
Shutter Speed | 1/1 s – 1/10,000 s |
White Balance | Auto/Manual/Indoor/Outdoor |
Gain | Auto/Manual |
Day & Night | IR Cut filter |
Digital Zoom | 16x |
Privacy Mask | 4 Programmable privacy masks |
3D DNR | Auto/Manual |
BLC | Yes |
HLC | Yes |
WDR | D-WDR |
Defog | Electronic |
EIS | Yes |
Regional Exposure | No |
Picture overlay | Logo picture could be overlaid on video |
Lens | |
Focus length | 4.5mm lens x 4 |
Aperture | F2.0 |
FOV | Panoramic image: Horizontal FOV:180°；Vertical FOV: 85° |
Working distance | 1.0m ~ INF |
IR | |
IR Range | 25m radius |
Smart IR | Yes |
Network | |
Max Resolution | 5520x2400@25/30fps |
Main stream | 5520 x2400, 3840×1680, 2784×1200(25/30fps) |
Sub stream: | 2048×896,704x320(25/30fps) |
Third stream: | 704x320 (25/30fps ) |
SVC | Yes |
Video compression | Smart H.265/H.264/MJPEG |
Audio compression | G.711 A/U |
Audio Enhancement | Not support |
Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP,RTCP, RTP, TCP/IP, UDP, IGMP, ICMP,DHCP, PPPoE |
Simultaneous live view | Up to 6 channels |
User / Host | Up to 16 users, 3 levels: Administrator, Advanced User and Normal User |
Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering |
Smart Features | |
Basic event | Motion detection (panorama and original modes support), video tampering alarm, exception (network disconnected, IP address conflict, SD full, SD error) |
Face Recognition | Max 100 human faces (mask) per second(default off) (V5.0.1 and later) |
Face Comparison | Default off |
People Density Statics | Yes (only the panorama mode support) |
Smart Detection | Intrusion detection, line crossing detection, region entrance detection, region exiting detection |
ePTZ | 5 Zones, auto trace and zoom fit (V5.0.1 does not support ) |
Alarm Linkage | Upload to FTP/Memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
System Integration | |
Alarm Interface | 1CH alarm input; 1CH alarm output |
Audio Interface | 1CH audio input, 2 to 2.4v[p-p] 1kΩ±10%; 1CH audio output (line out), impedance: 600Ω |
Network Interface | 1 RJ45 10M/100M/1000MAdaptive Ethernet (Support PoE 802.3.at) |
CVBS | Optional |
RS 485 | Pelco-D / P protocol, custom protocols available |
Storage | Built-in memory card slot, support microSD/SDHC/SDXC, up to 256G |
USB3.0 | Not support |
Fiber Optical | Not Support |
GIS | Not Support |
API | ONVIF, support TVT SDK and third-party management platform |
Client | VMS-9000 and the third-party client |
Web Browser | IE8-11 (NOT support Safari /Firefox /Chrome) |
General | |
Power | DC12V,PoE+(802.3.at, class 3), (Max 25W, include IR on ) |
Working condition | -30°C ~ 60°C (-22°F ~ 140 °F),90%RH less (non-condensing),cold start at -20°C |
Storage condition | -40°C ~ 70°C ;≤ 95%RH |
Protection | IP 67, IK 10, 6000VLightning Protection, Surge Protection and Voltage Transient Protection |
Material | Aluminum Alloy; PC + GF |
Dimensions | LxWxH= 288.4mm x 159.7mm x 137.7mm (11.35” x 6.29”x 5.42”) |
Weight | Approx. 2.1Kg(4.63lb) |
Certification | ROHS, CE, FC, IK10, IP67 |
