5MP 20fps/4MP real-time image, high resolution, true color
AHD / TVI / CVI / CVBS standard and lossless video output
Up to 1500 TVL resolution
CMOS progressive scan, perfectly capturing the moving object
Support OSD menu
High speed, long distance and real time transmission
Auto color to B / W at low illumination
Support ICR switch, true day / night
Support noise reduction function
10 ~ 20m IR night view distance
IP 67 & IK10 ingress protection
Support COC
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Model | TD-7551AE3 |
Camera | |
Image Sensor | 1 / 2.5" CMOS |
Resolution | 5MP |
Image Size | Max. 2944 × 1656 (16:9) |
Video Output | AHD / TVI / CVI / CVBS |
Audio | No |
Image System | PAL / NTSC |
Electronic Shutter | Auto; 1/50s~1/100000s (PAL); 1/60s~1/100000(NTSC) |
IR Distance | 10 ~20 m |
Frame Rate | TVI: 2944×1656@20fps, 2560×1440@25fps/30fps AHD: 2944×1656@20fps, 2560×1440@25fps/30fps |
Min. Illumination | |
Lens | 2.8 mm |
Lens Mount | M12 |
S / N Ratio | ≥52dB ( AGC OFF ) |
Ingress Protection | IP 67 & IK10 |
Functions | |
Function Control | OSD ( COC Control ) |
Day & Night | ICR |
Digital WDR | Yes |
Digital NR | Yes, 2D DNR |
AGC | Yes |
Auto White Balance | Yes |
BLC | Yes |
HLC | Yes |
Sharpness | Yes |
Smart LED | Yes |
Image Setting | Yes |
Defect Correction | Auto |
Language | Chinese and English |
Angle Adjustment | Pan: 0°~355°; Tilt: 0°~67°; Rotation: 0°~355° |
Others | |
Power Supply | DC12V ( ± 15% ) |
Power Consumption | IR OFF : < 1W; IR ON : < 4W |
Working Environment | - 30 °C ~ 50 °C, 10 % ~ 90 %（relative humidity） |

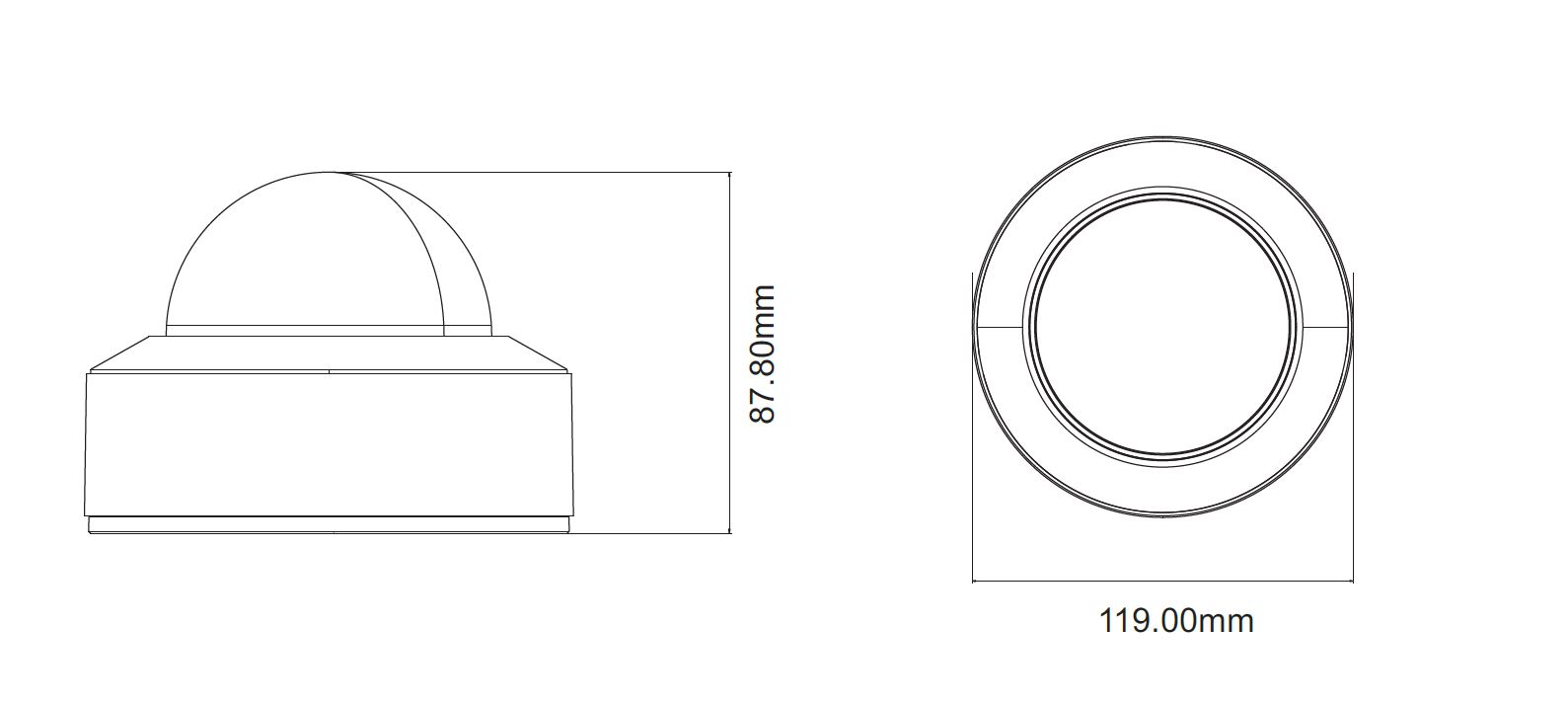

Dimensions ( mm ) | Ф 119 x 87.8 |
Weight ( net ) | Approx. 0.6KG |
