Camera

Image Sensor

1 / 2.7 "CMOS

Image Size

2592 × 1944

Electronic Shutter

1 / 3 s ~ 1 / 100000 s

Iris Type

DC Iris

Min. Illumination

0.01lux@F1.4, AGC ON, 0 lux with IR

Lens

2.8~12mm@F1.4,  motorized

Field of View

Horizontal: 96°~28°; Vertical: 70°~21°; Diagonal: 129°~35.5°

Lens Mount

Φ14

Day & Night

ICR

Wide Dynamic Range

120dB

BLC

Yes

HLC

Yes

Defog

Yes

S/N Ratio

≥50dB

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°


Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264
Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

H.264 Compression Standard

Baseline Profile/Main Profile/High Profile

Resolution

5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440), 3MP(2304×1296 ),
1080P (1920×1080), 720P (1280×720 ), D1, VGA (640×480), CIF, 480×240

Main Stream

5MP/4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )

Sub Stream

720P/D1/VGA/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )

Third Stream

D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )

Bit Rate

64 Kbps ~ 8 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Interfaces

Network

RJ 45 10M/100M self-adaptive Ethernet port

Video Output

No

Audio

1CH audio input; 1CH audio output; 1 CH built-in MIC

Storage

Built-in micro SD card slot; up to 256GB

Reset

Yes

Alarm

1CH alarm input; 1CH alarm output

Intelligent Analytics

Smart Event

Line crossing, region intrusion/entrance/exiting, loitering detection, illegal parking detection, abandoned/ missing object detection

Target Counting

Target counting by line/area, heat map

Exception Detection

Scene change, video blur and abnormal color detection, audio exception

Face Detection

Face detection and face capture

Video Metadata

Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8~12mm(W)

55.53m(182.18ft)

22.21m(72.86ft)

11.11m(36.45ft)

5.55m(18.20ft)

2.8~12mm(T)

209.78m(688.25ft)

83.91m(275.29ft)

41.96m(137.66ft)

20.98m(68.83ft)

Functions

Remote Monitoring

Web Browser/TVT NVMS2.0/NVR/mobile APP

Web Browser

Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+

Online Connection

Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, P2P, QoS

Interface Protocol

ONVIF

Storage

Network remote storage; micro SD card storage

Smart Alarm

Motion detection, SMD, SD card error, SD card full, IP address conflict, Network disconnection, sensor alarm, audio alarm

General Function

Watermark, video mask, heartbeat, image distortion correction, corridor pattern, ANR, cloud upgrade

Security

Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP

PoE

Yes , IEEE802.3af

IR Distance

20 ~ 30 m

Weather-proof Grade

No

Others

Power Supply

DC12V/PoE

Power Consumption

< 7.5W

Storage Conditions

- 10 °C ~ 50°C (14°F~122°F), Humidity: less than 95 % (non-condensing)

Operating Conditions

- 10 °C ~ 40 °C (14°F~104°F), Humidity: less than 95 % (non-condensing)

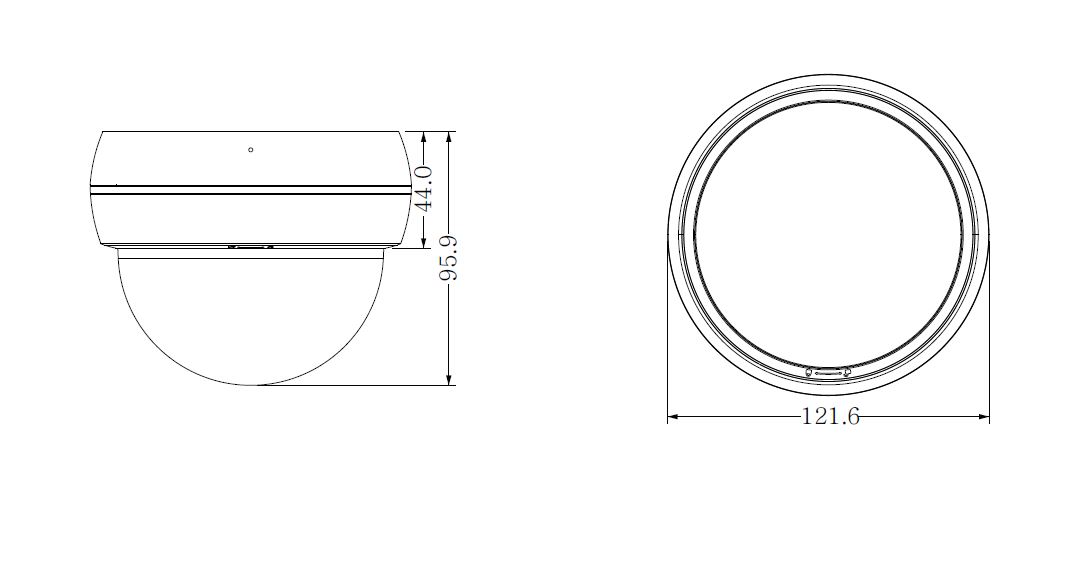

Dimensions ( mm )

Ø121.6 × 95.9

Weight ( net )

Approx. 0.38KG

Installation

Ceiling mounting; Wall mounting

Certificate

CE, FCC

Environmental Protection

Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
