High-performance X86 hardware platform, stable and reliable
Preset software before delivery; All-in-One simple deployment
Supports the device access of TVT and other famous manufacturers in the industry
Supports ONVIF protocol
Supports device auto-report
Supports adding devices through IP address, IP address segment, URL, domain name and serial number
Automatically search devices and quickly adding devices
Supports standard, widescreen and customized screen display modes
Supports instant playback and alarm preview
Supports corridor mode
Supports fisheye mode
Supports PTZ direction control and focus control; supports setting and calling preset and cruise
Supports voice monitoring, two-way talk and broadcast
Supports record search, playback and downloading from device and control center
Supports search and playback by time, channel, event and tag
Supports time-slice playback
Supports record clip and backup; support backup by time and event
Supports video search, playback and downloading from SD card of the IPC
Supports multi-level images and online E-map
Supports TV wall management, including splicing, PIP, roaming and triggering video on TV wall
Supports auto-switch plan and camera group on TV wall
Supports various alarm types and alarm linkages
Supports multi-level, multi-area and multi-user permission management
Supports log management, including notices and alarms of device’s online and offline status
SDK/OCX available for client’s secondary development
Supports DB31/T889-2015 and DB33/T629-2011 protocols
Supports RTMP/HLS/RTSP/HTTP-FLV protocol
Supports alarm host, access control system/attendance system, as well as one-button alarm system access
Supports Android mobile APP
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Model | TD-A500-MS-S |
CPU | Intel Core Processor I3 |
OS | Linux |
Memory | 8GB DDR4 ECC，up to 128GB |
Network Card | Integrated InteI210-AT dual gigabit Ethernet ports |
HDD | 1 built-in 128G SSD |
PCI Expansion | 1*PCI-E3.0*8; 1*PCI-E3.0*8(X4);1*PCI-E3.0*16(X8) |
Interface | VGA ×1, USB3.1 × 6, network interface ×2; COM× 1，remote management port × 1 |
Device Access | IPC, DVR, NVR, Decoder, etc. |
Max. Number of Channel Access | 1024 CH(extensible to 10000CH via the transfer server) |
Max. Number of Device Access | 400 devices (extensible to 10000CH after it is authorized) |
Max. Number of Channel Access of Single Transfer Service | 1024CH |
Max. Number of Device Access of Single Transfer Service | 200DVRs/NVRs or 400IPCs |
Max. Decoding Output Number | 128CH |
Max. Number of Transfer Server Access | 32 |
Max. Number of Storage Server Access | 32 |
Max. Number of Channel Access of Third-party protocol | 16(extensible to 10000CH after it is authorized) |
Max. Number of Device Access of Third-party protocol | 4(extensible to 10000CH after it is authorized) |
Max. Channel Number of Simultaneous Preview | 100 (for one client/user) |
Max. Channel Number of Simultaneous Playback | 16 (for one client/user) |
Max. Number of Views | Up to 64 view plans can be created |
Max. User Access | Max. 64 users (extensible to 1024 users access after it is authorized) |
Max. Online Users | 64 users preview simultaneously |
User Permission | Self-define |
Real-time View | Up to 100CH real-time preview; support auto-switch |
PTZ | Support PTZ protocol, PTZ permission, PTZ lock, PTZ preset management |
Storage Type | IP SAN/streaming media storage |
Record Type | Schedule, manual and alarm records |
Record Search | Multi-channel synchronous search and playback |
Incoming Bandwidth | 400Mbps |
Outgoing Bandwidth | 400Mbps |
Power | 100~240V-6~3A/50~60Hz |
Power Consumption | ≤300（with HDD） |
Working Environment | - Working: 10°C ~ 35°C ; Standby: –40°C ~+70°C (ambient) |
Relative Humidity | Standby: 95%， 25°C ~ 30°C (non-condensing) |
Noise | Working: <50dBA; 6.2BA (<28°C) |

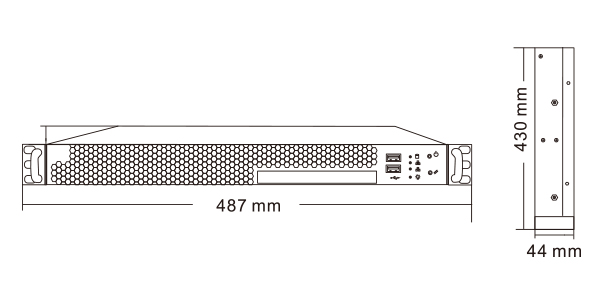

Dimensions | 430 x 487 x 44 (W x D x H) |
Gross Weight | Approx. 12KG |
Installation | Standard 19 inch rack mount |
