High-performance hardware platform, stable and reliable
Embedded Linux operating system; All-in-One simple deployment
Supports 8 SATA interfaces and RAID0,1,5,6,10
Supports the device access of TVT
Supports ONVIF protocol
Supports standard, widescreen and customized screen display modes
Supports 1CH instant playback and main output alarm preview
Supports device and storage server record search, playback and download
Supports record search and playback by time, channel, event and tag
Supports record clip and backup; Support backup by time and event
Supports TV wall management, including splicing, PIP, roaming and triggering video on TV wall
Supports human/vehicle monitoring deployment and visitor management
Supports corridor pattern
Supports 1CH fisheye camera access
Supports PTZ control, preset and cruise settings and calling
Supports voice monitoring, two-way talk and broadcast
Supports picture map
Supports various alarm types and linkages
Supports multi-level, multi-area and multi-user permission management
Supports SDK development package for customized integration application
Supports Android mobile APP management
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
System | Operation System | Linux |
Memory | LPDDR4 8G, 64GB EMMC | |
Video &Audio | Video Output | VGA×1: 1920*1080 (VGA and HDMITM output the same video source) |
HDMITM1: 3840×2160@60, 3840×2160@30, 1920×1080 | ||
Video Compression | H.264/H.265/H.265+/H.265S | |
Audio Output | 1CH audio output (MONO Out) | |
Support HDMITM1 audio output | ||
Audio Compression | G.711(U/A) | |
Live View | Max. number of preview | 84(36+16+16+16) |
Max. Resolution | 16MP | |
Decoding Capability | 1 ×16MP or 4 ×12MP or 6 ×8MP (only available for main output) | |
Playback | Simultaneous Playback | 16CH |
Max. Resolution | 16MP | |
Decoding Capability | 1 ×16MP or 4 ×12MP or 6 ×8MP (only available for main output) | |
Performance | Users | 64 online users and 64 total users |
Max. Number of Channel Access | 512CH | |
Max. Number of Device Access | 256 devices | |
Max. Number of Decoding Output | 16 | |
Max. Number of Transfer Server Access | 1 | |
Max. Number of Storage Server Access | 1 | |
Max. Channel Number of Recording per Storage Server | 64 | |
Max. Number of Channel Access of Third-party protocol | 512 | |
Max. Number of Device Access of Third-party protocol | 256 | |
Max. Channel Number of Simultaneous Preview | 256 (for one client/user) | |
Max. Channel Number of Simultaneous Playback | 16 (for one client/user) | |
Max. Number of Views | Up to 64 view plans can be created | |
Max. Number of Channel Access of Single Transfer Service | 512 | |
Max. Number of Device Access of Single Transfer Service | 256 | |
Incoming Bandwidth | 640Mbps | |
Outgoing Bandwidth | 256Mbps | |
Storage Bandwidth | 384Mbps | |
Face Database | A maximum of 30,000 face pictures can be registered | |
Vehicle Database | A maximum of 10,000 license plates can be registered | |
Fisheye Camera Access | Support 1CH fisheye camera to set fisheye mode | |
Number of TV Wall | Max. 16 TV walls can be created | |
TV Wall Plan per TV Wall | Max. 64 plans can be set for each TV wall | |
External Interfaces | Ethernet Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet ports |
Storage | SATA3.0 x 8，up to 10TB per HDD; | |
E-SATA Interface | E-SATA × 2 | |
Alarm | 16CH alarm input; 4CH alarm output | |
USB | USB3.0 ×1 ， USB 2.0 × 2 | |
RS485 | Full-duplex (currently no function) | |
Others | Power | ATX-200W |
Power Consumption | ≤50 W (without HDD) | |
Working Temperature | –10°C - +50°C | |
Relative Humidity | 10% ~ 90% | |
Dimensions | 445 × 436 × 90mm | |
Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU) , Directive 94/62/EC |
English
Azərbaycan

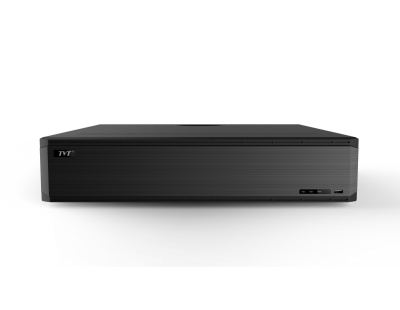

0 review(s) for "TD-A708E1-A0 VMS Station"
