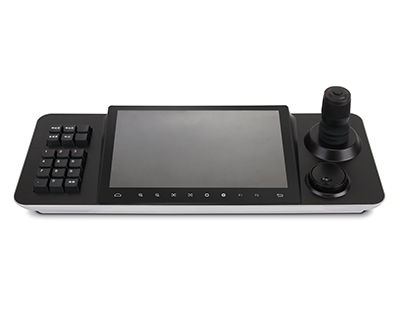

10.1 inch capacitive touch screen
Android 6.0 operating system
H.264/H.265 decoding ; single screen display in platform mode; a maximum of 4-screen display in PTZ mode
Supports viewing images on the touch screen or outputting images on the external monitor via HDMITM interface
ONVIF protocol supported
Supports USB flash disk upgrade, USB mouse
The full range of our PTZ cameras can be connected via the network
Supports PTZ control, preset, cruise and track setup and calling
Up to 1024 devices can be added
Supports our surveillance management platform access
Supports the control of the TV Wall in the platform, including viewing plan, screen display mode switch, decoding on TV wall, PTZ control, video playback, etc.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
| Operating system | Android 6.0 |
| Screen size | IPS 10.1 inch screen，1280*800 capacitive touch screen |
| Display | HDMITM 4K@30fps |
| Decoding capability | Platform mode: Max.H.265 1CH 1080p@30fps PTZ mode: Max.H.265 1CH 4k@30fps, H.264 1CH 1080P@60fps or 4CH 720p@30fps; |
| Protocol | ONVIF 2.4 |
| Function | Up to 1024 devices can be added in PTZ mode; PTZ control: preset/cruise/scan… Supports the access of surveillance platform in platform mode; The plan, screen display, live view, PTZ and playback in the TV wall management of a platform can be controlled |
| System settings | Supports language settings, password modification, date and time settings and USB flash disk upgrade; restore to factory default setting |
| Power | Standard 5.5/2.1 Power interface， DC 12V2A±10% |
| Interfaces | 1 RJ45 Ethernet port; 1 RS485; 1 RS232; 1 HDMITM output(V 1.3); 1 USB2.0 port; 1 standard 3.5mm headphone jack |
| Operation interface | 4D Joystick, Knob, Buttons |
| Power consumption | ＜15W |
| Standby current | ＜100mA |
| Mean time between failures | ＞30000h |
| Working humidity | 10%-90%(RH) |
| Working temperature | -10°C-40°C |
| Storage temperature | -40°C-60°C |

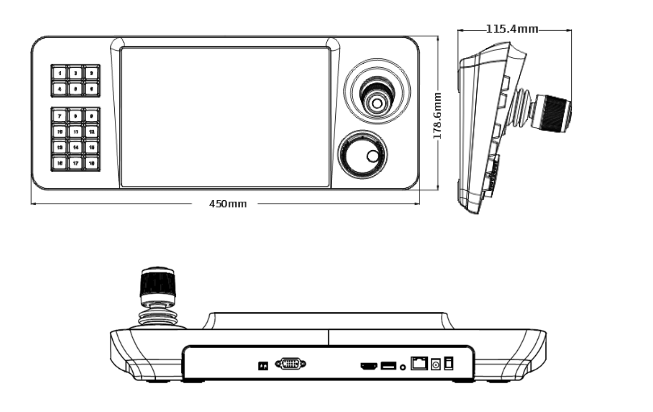

| Dimensions(mm) | 450x179x115 |
| Net weight（kg） | Approx. 1.388 |
