4 / 8 CH TVI / AHD/CVI 5MP / 4MP / 1080P / 720P / WD1 video input
4 / 8 CH DVRs default support 2 / 4 CH 5MP / 4MP / 3MP / 1080P / 960P /720P IP video input by default
4/8CH analog video input can be switched to 4/8CH IP video input for 4/8CH DVR
Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timed / motion /AI recording
Playback : 4 / 8 CH simultaneously playback
Search: time slice, time, event ( manual, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol
Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
Support remote network transmission and remote surveillance with mobile device Multi-user online simultaneously
Authorization management, log review and device status review
1080P output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Andriod OS
Pulsuz Çatdırılma 100 AZN yuxarı bütün sifarişlərə şamil olunur
Bütün məhsullara 100% zəmanət verilir
1gün ərzində məhsulları geri qaytarma edə bilərsiz
Covid-19 Məlumatı: Çatdırmağa davam edirik.
Model | TD-2704NS-HC | TD-2708NS-HC | |
| System | OS | Embedded Linux | |
| Video | Analog Video Input | BNC × 4 | BNC × 8 |
| BNC interface (1.0Vp-p; 75Ω) | |||
| TVI / AHD/CVI : 5MP/4MP/1080P/720P/WD1 (live) | |||
| IP Video Input | 2CH(up to 6CH) | 4CH (up to 12CH) | |
| Up to 5MP@30fps | Up to 5MP@30fps | ||
| Total Input | 6CH | 12CH | |
| Output | HDMI TM × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 | ||
| VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 | |||
| BNC × 1 : CVBS ( used as the main or spot output ) | |||
| Compression | H.264/H.265 | ||
| Multi-screen Display | 1 /4/6/9 | 1 /4/6/8/9/13/16 | |
| Audio | Input | RCA × 4 | RCA × 8 |
| Output | RCA × 1 (linear, 600Ω) | ||
| Two-way audio | Take up channel one audio input | ||
| Compression | G.711(U/A) | ||
| Record | Resolution | 5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1/D1 | |
| Frame Rate | Analog Channel: | ||
| 5MP Lite@10fps (PAL / NTSC) | |||
| 4MP Lite/1080P@12fps(PAL) / 15fps (NTSC) | |||
| 1080P Lite/720P/WD1/D1@25fps (PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC) | |||
| Bit Rate | 32Kbps ~ 4Mbps | ||
| Mode | Manual, timer, motion, smart event | ||
| Playback | Playback | 4CH | 8CH |
| Search | Time slice / time / event / tag search | ||
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events | ||
| Function | Play, pause, FF, FB, digital zoom, etc. | ||
| Alarm | Mode | Manual, motion, exception, smart event | |
| Input | 4CH | 8CH | |
| Output | 1CH | 2CH | |
| Network | Interface | RJ 45 100Mbps × 1 | |
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP | ||
| Incoming Bandwidth | 16Mbps | 32Mbps | |
| Outgoing Bandwidth | 40Mbps | 60Mbps | |
| Client Connection | Max. 5 users access | ||
| MobileDevice | OS | iOS, Andriod | |
| Storage | HDD | SATA×1, up to 10TB | SATA×1, up to 10TB; E-SATA×1 |
| Backup | Local Backup | U disk, USB mobile HDD | |
| Network Backup | Yes | ||
| Port | RS 485 | Yes (half-duplex), connect to PTZ or keyboard | |
| USB | USB 2.0 × 2 | ||
| Remote Controller | Optional | ||
| Others | Power Supply | DC12V/2A | DC12V/3A |
| Consumption | ≤ 10W ( without HDD ) | ≤ 10W ( without HDD ) | |
| Dimensions(mm) | 300 × 249 × 45mm ( W × D × H ) | ||
| Working Environment | -10~50°C, 10%~90% (humidity) | ||
| Certificate | CE, FCC | ||
| Environmental Protection | Directive EU RoHS, WEEE, REACH | ||
Azərbaycan
English

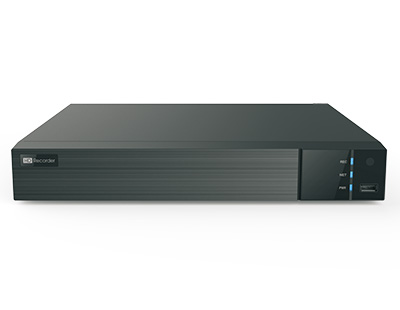

0 review(s) for "TD-2704NS-HC/TD-2708NS-HC 4/8CH Hybrid DVR"
